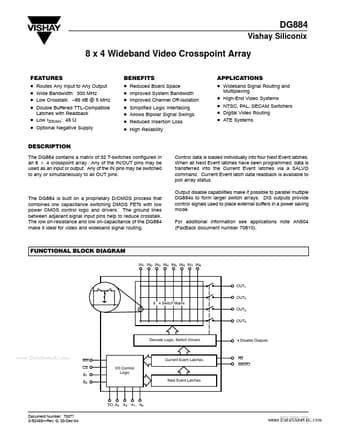

DG884 8 x 4 Wideband Video Crosspoint Array

The DG884 contains a matrix of 32 T-switches configured in an 8 4 crosspoint array. Any of the IN/OUT pins may be used as an input or output. Any of the IN pins may be switched to any or simultaneously to all OUT pins. Control data is loaded individually into four Next Event latches. When all Next E.

DG884 Features

* Routes Any Input to Any Output Wide Bandwidth: 300 MHz Low Crosstalk:

* 85 dB @ 5 MHz Double Buffered TTL-Compatible Latches with Readback D Low rDS(on): 45 W D Optional Negative Supply D D D D BENEFITS D D D D D D D Reduced Board Space Improved System Bandwidth Improved Channel Off-Isolatio
