DG9431DV

Low-Voltage Single SPDT Analog Switch

DG9431DV Features

* D D D D D D D D D Low Voltage Operation (+2.7 to +5 V) Low On-Resistance - rDS(on): 20 W Fast Switching - tON : 35 ns, tOFF: 20 ns Low Leakage - ICOM(on): 200-pA max Low Charge Injection - QINJ: 1 pC Low Power Consumption TTL/CMOS Compatible ESD Protection > 2000 V (Method 3015.7) Available in TSOP-

DG9431DV General Description

The DG9431 is a single-pole/double-throw monolithic CMOS analog device designed for high performance switching of analog signals. Combining low power, high speed (tON: 35 ns, tOFF: 20 ns), low on-resistance (rDS(on): 20 W) and small physical size (TSOP-6), the DG9431 is ideal for portable and batter.

DG9431DV Datasheet (72.50 KB)

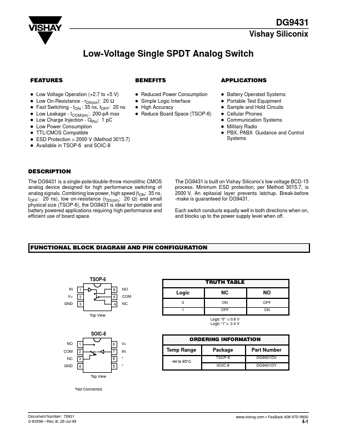

Preview of DG9431DV PDF

Datasheet Details

Part number:

DG9431DV

Manufacturer:

Vishay ↗ Siliconix

File Size:

72.50 KB

Description:

Low-voltage single spdt analog switch.
