DG9432 Low-Voltage Dual SPST Analog Switch

DG9432 Description

DG9432, DG9433, DG9434 Vishay Siliconix Low-Voltage Dual SPST Analog Switch .
The DG9432, DG9433, DG9434 is a dual single-pole/singlethrow monolithic CMOS analog switch designed for high performance switching of analog signals.

DG9432 Features

* Wide operation voltage (+ 2.7 V to + 12 V)
* Low charge injection - QINJ: 1 pC
* Low power consumption
* TTL/CMOS logic compatible over the full operating voltage range
* Available in MSOP-8 and SOT23-8
* Compliant to RoHS Directive 2002/95/EC BENEFI

DG9432 Applications

* requiring high performance and efficient use of board space. The DG9432, DG9433, DG9434 is built on Vishay Siliconix’s low voltage BCD-15 process. An epitaxial layer prevents latchup. Break-before-make is guaranteed for DG9432, DG9433, DG9434. Each switch conducts equally well in both directions whe

📥 Download Datasheet

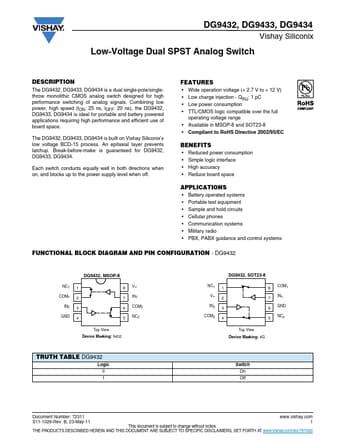

Preview of DG9432 PDF
