DG9433

Low-Voltage Dual SPST Analog Switch

DG9433 Features

* Wide operation voltage (+ 2.7 V to + 12 V)

* Low charge injection - QINJ: 1 pC

* Low power consumption

* TTL/CMOS logic compatible over the full operating voltage range

* Available in MSOP-8 and SOT23-8

* Compliant to RoHS Directive 2002/95/EC BENEFI

DG9433 General Description

The DG9432, DG9433, DG9434 is a dual single-pole/singlethrow monolithic CMOS analog switch designed for high performance switching of analog signals. Combining low power, high speed (tON: 25 ns, tOFF: 20 ns), the DG9432, DG9433, DG9434 is ideal for portable and battery powered applications requiring.

DG9433 Datasheet (173.97 KB)

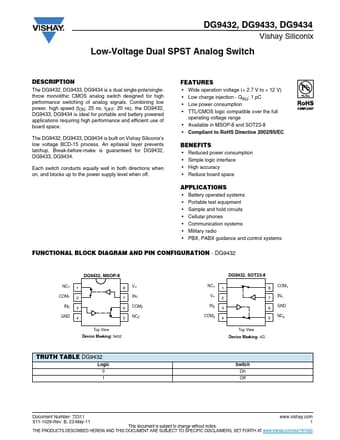

Preview of DG9433 PDF

Datasheet Details

Part number:

DG9433

Manufacturer:

Vishay ↗ Siliconix

File Size:

173.97 KB

Description:

Low-voltage dual spst analog switch.
