Datasheet Details
Part number:
GI812, GI810
Manufacturer:
Vishay ↗ Siliconix
File Size:
132.25 KB
Description:

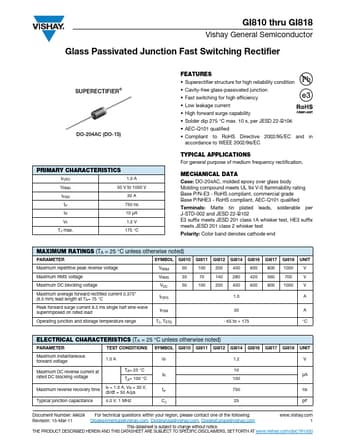

(GI810 - GI818) Glass Passivated Junction Fast Switching Rectifier
Note:
This datasheet PDF includes multiple part numbers: GI812, GI810.
Please refer to the document for exact specifications by model.
Features
* Superectifier structure for high reliability condition SUPERECTIFIER ®Applications
* For general purpose of medium frequency rectification. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM trr IR VF TJ max. 1.0 A 50 V to 1000 V 30 A 750 ns 10 μA 1.2 V 175 °C MECHANICAL DATA Case: DO-204AC, molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHSGI812 Distributors
