Datasheet Specifications
- Part number
- GP10A
- Manufacturer
- Vishay ↗ Siliconix
- File Size
- 133.94 KB
- Datasheet
- GP10A_VishaySiliconix.pdf
- Description
- Glass Passivated Junction Rectifier
Description

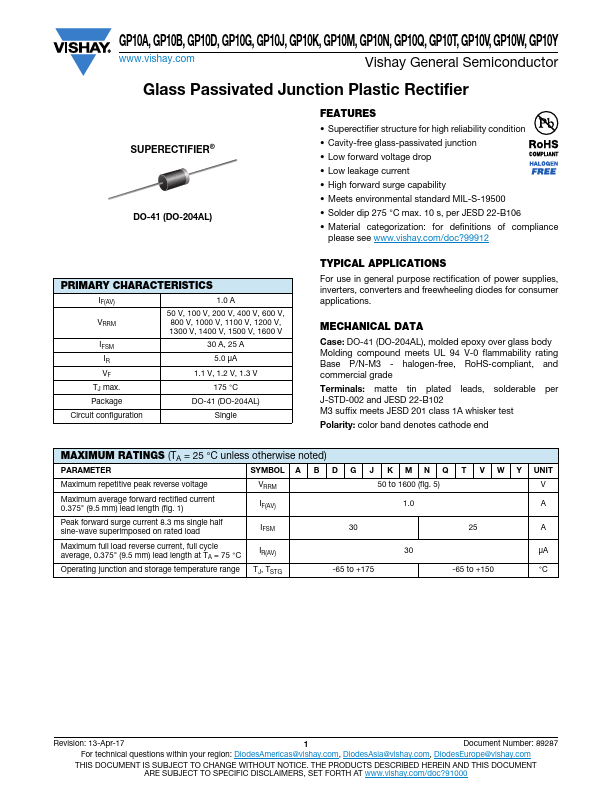

www.DataSheet.co.kr GP10A thru GP10Y Vishay General Semiconductor Glass Passivated Junction Rectifier .
Applications
* PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM IR VF TJ max. 1.0 A 50 V to 1600 V 30 A, 25 A 5.0 μA 1.1 V, 1.2 V, 1.3 V 175 °C For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for both consumer and automotive applications. MECHANICAL DATA Case: DOGP10A Distributors
