GP10J, GP10A Glass Passivated Junction Rectifier

Vishay Siliconix

Description

GP10A, GP10B, GP10D, GP10G, GP10J, GP10K, GP10M, GP10N, GP10Q, GP10T, GP10V, GP10W, GP10Y www.vishay.com Vishay General Semiconductor Glass Passiva.

📥 Download Datasheet

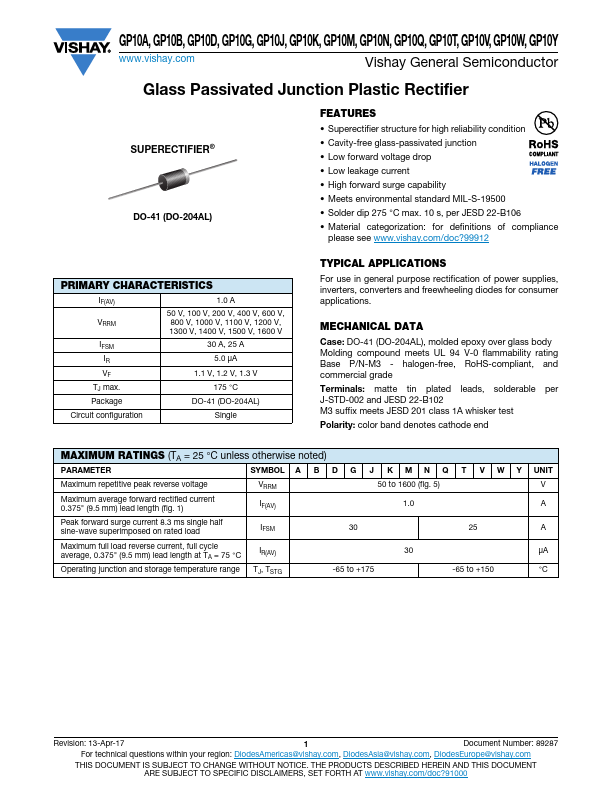

GP10J Datasheet Preview — This datasheet PDF includes multiple part numbers: GP10J, GP10A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GP10J, GP10A
Manufacturer: Vishay ↗ Siliconix
File Size: 73.31 KB
Datasheet: GP10A_VishaySiliconix.pdf
Description: Glass Passivated Junction Rectifier
Note: This datasheet PDF includes multiple part numbers: GP10J, GP10A.
Please refer to the document for exact specifications by model.

Features

* Superectifier structure for high reliability condition
* Cavity-free glass-passivated junction
* Low forward voltage drop
* Low leakage current
* High forward surge capability
* Meets environmental standard MIL-S-19500
* Solder dip 275 °C max

Applications

* For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer applications. MECHANICAL DATA Case: DO-41 (DO-204AL), molded epoxy over glass body Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant,
