IL206AT, IL205AT Optocoupler / Phototransistor

IL206AT Description

IL205AT/206AT/207AT/208AT Vishay Semiconductors Optocoupler, Phototransistor Output, with Base Connection in SOIC-8 Package .
The IL205AT/IL206AT/IL207AT/IL208AT are optically coupled pairs with a gallium arsenide infrared LED and a silicon NPN phototransistor.

IL206AT Features

* A1 K2 NC 3 NC 4 8 NC 7B 6C 5E
* High BVCEO, 70 V
* Isolation test voltage, 4000 VRMS
* Industry standard SOIC-8A mountable package surface
* Compatible with dual wave, vapor phase and IR reflow soldering
* Lead (Pb)-free component i179002
* Com

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IL206AT, IL205AT. Please refer to the document for exact specifications by model.

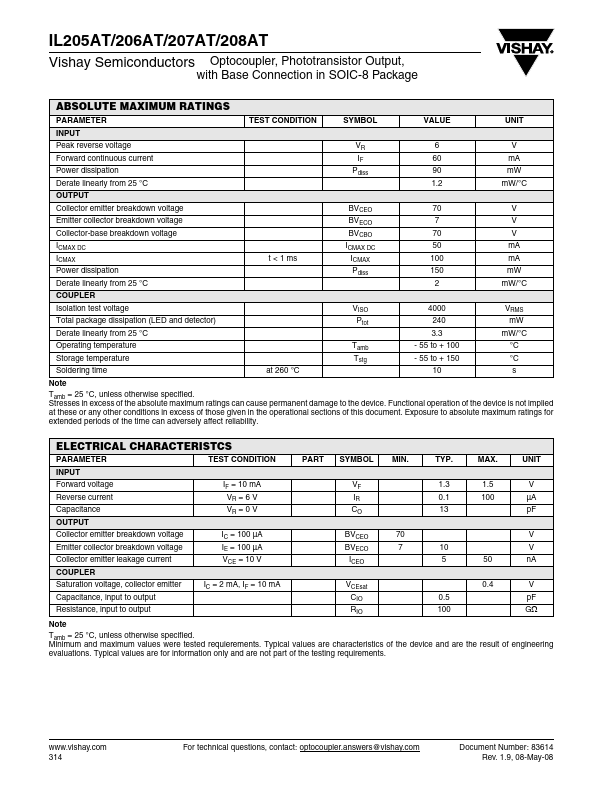

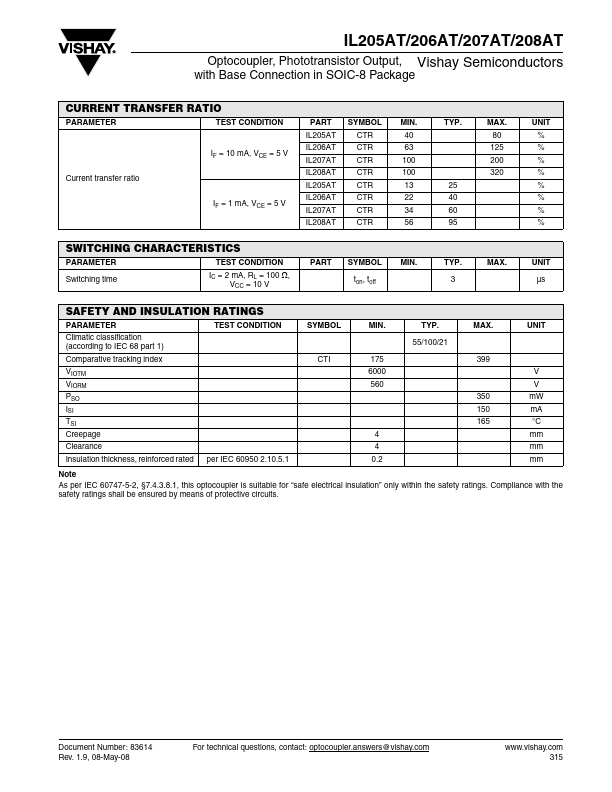

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IL206AT, IL205AT
Manufacturer
Vishay ↗ Siliconix
File Size
102.69 KB
Datasheet
IL205AT_VishaySiliconix.pdf
Description
Optocoupler / Phototransistor
Note
This datasheet PDF includes multiple part numbers: IL206AT, IL205AT.
Please refer to the document for exact specifications by model.
