IL300 Datasheet - Vishay Siliconix

Linear Optocoupler

IL300 Features

* Couples AC and DC signals

* High gain stability, ± 0.005 %/°C typically

* Low input-output capacitance

* Isolation rated voltage 4420 VRMS

* Internal insulation distance, > 0.4 mm

* Material categorization: for definitions of compliance please see ww

IL300 General Description

The IL300 linear optocoupler consists of an AlGaAs infrared emitter irradiating an output PIN photodiode and a feedback photodiode. The feedback photodiode captures a percentage of the emitter’s flux and generates a control signal (IP1) that can be used to keep the emitter output constant by adjusti.

IL300 Datasheet (203.32 KB)

IL300 Datasheet Preview — Preview of IL300 PDF

Datasheet Details

Part number:

IL300

Manufacturer:

Vishay ↗ Siliconix

File Size:

203.32 KB

Description:

Linear optocoupler.

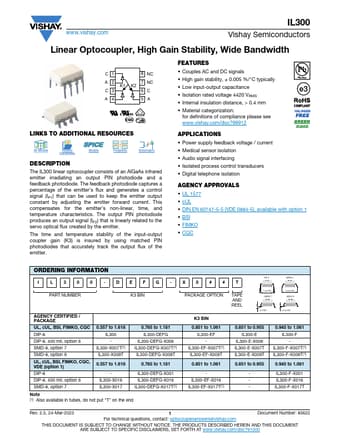

www.vishay.com IL300 Vishay Semiconductors Linear Optocoupler, High Gain Stability, Wide Bandwidth C1 8 NC A2 7 NC K1 K2 C3 6C A4 5A DVE .
