IMC-1008 Datasheet - Vishay Siliconix

IMC-1008 - Surface Mount Inductor

IMC-1008 MODEL 10 nH INDUCTANCE VALUE ±5% INDUCTANCE TOLERANCE ER PACKAGE CODE e4 * JEDEC LEAD (Pb)-FREE STANDARD *NOTE: For parts within 3.3 nH to 910 nH please use e4 for JEDEC lead free standard.

For parts within 1 µH to 47 µH please use e3 for JEDEC lead free standard.

GLOBAL PART NUMBE

IMC-1008 Features

* High self-resonant frequency values High Q values at higher frequencies Wirewound construction RoHS Tape and reel packaging for automatic handling, COMPLIANT 2000/reel

* Compatible with vapor phase and infrared reflow soldering STANDARD ELECTRICAL SPE

IMC-1008_VishaySiliconix.pdf

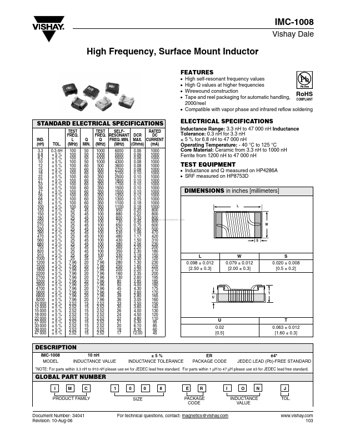

Preview of IMC-1008 PDF
IMC-1008 Datasheet Preview Page 2 IMC-1008 Datasheet Preview Page 3

Datasheet Details

Part number:

IMC-1008

Manufacturer:

Vishay ↗ Siliconix

File Size:

132.99 KB

Description:

Surface mount inductor.
