IRFR9120 Datasheet - Vishay Siliconix

Power MOSFET

IRFR9120 Features

* Dynamic dV/dt Rating

* Repetitive Avalanche Rated

* Surface Mount (IRFR9120, SiHFR9120)

* Straight Lead (IRFU9120, SiHFU9120)

* Available in Tape and Reel

* P-Channel

* Fast Switching

* Material categorization: For definitions of comp

IRFR9120 General Description

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effictiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead vers.

IRFR9120 Datasheet (1.07 MB)

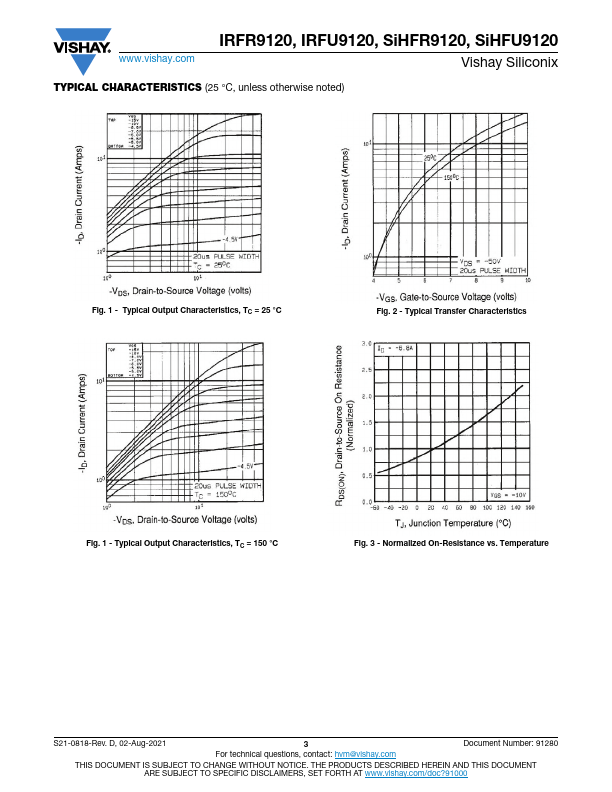

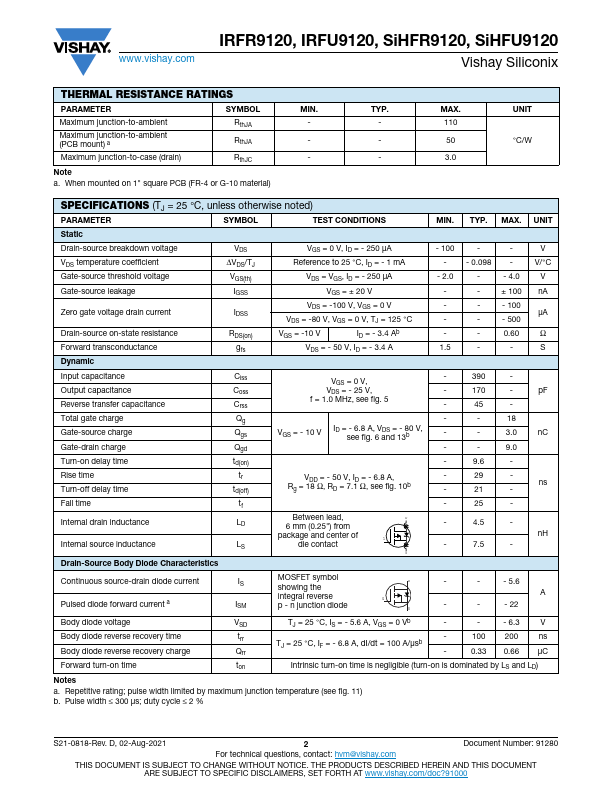

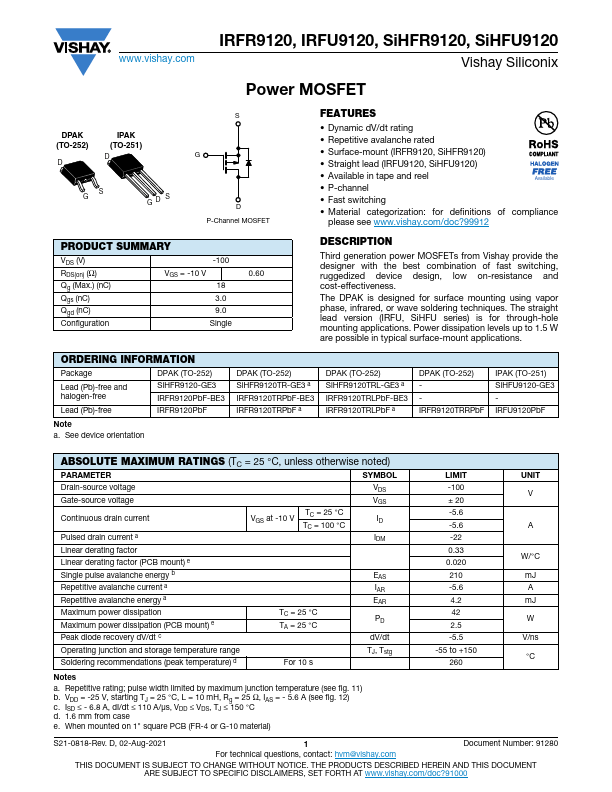

IRFR9120 Datasheet Preview — Preview of IRFR9120 PDF

Datasheet Details

Part number:

IRFR9120

Manufacturer:

Vishay ↗ Siliconix

File Size:

1.07 MB

Description:

Power mosfet.
IRFR9120, IRFU9120, SiHFR9120, SiHFU9120 www.vishay.com Vishay Siliconix Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Qg (Max.) (nC) Qgs (nC).
