IRFU1N60A Datasheet, Mosfet, Vishay Siliconix

IRFU1N60A Features

  • Mosfet
  • Low Gate Charge Qg Results in Simple Drive Requirement
  • Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
  • Fully Characterized Capacitance and Avalanche

PDF File Details

Part number:

IRFU1N60A

Manufacturer:

Vishay ↗ Siliconix

File Size:

256.15kb

Download:

📄 Datasheet

Description:

Power mosfet.

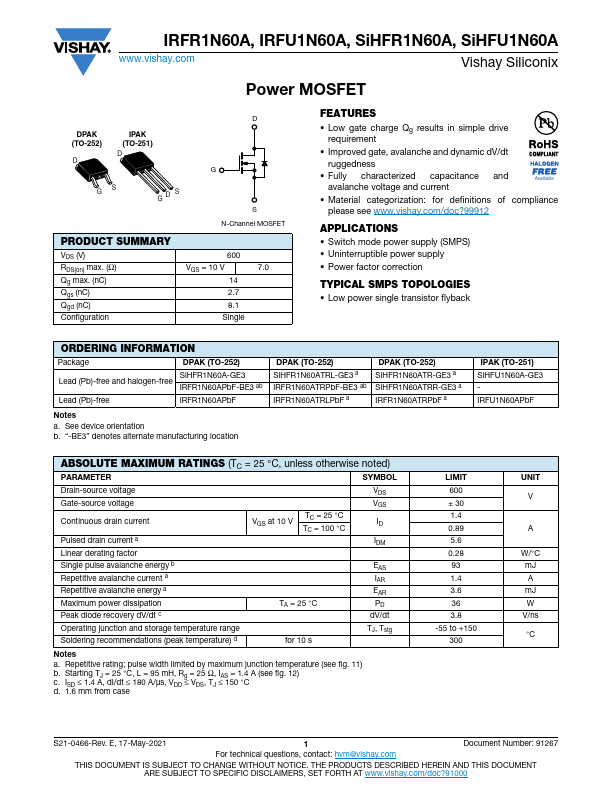

Datasheet Preview: IRFU1N60A 📥 Download PDF (256.15kb)

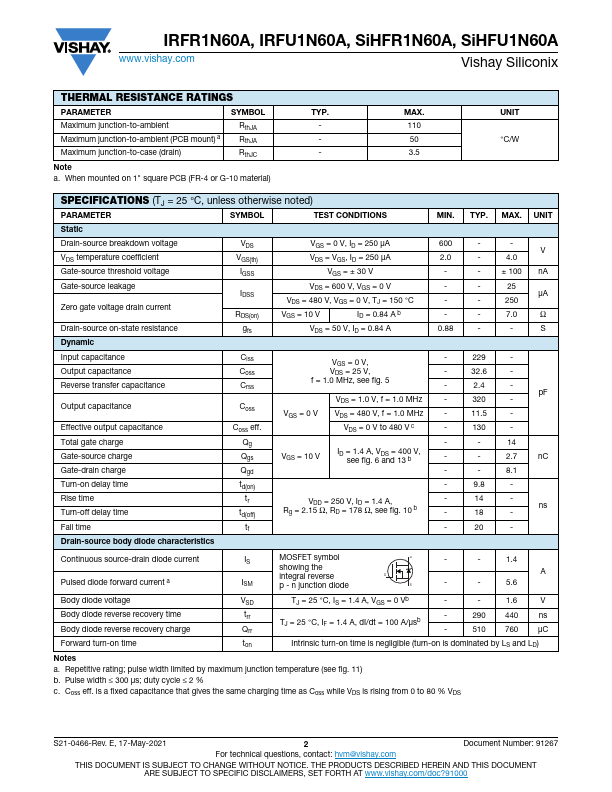

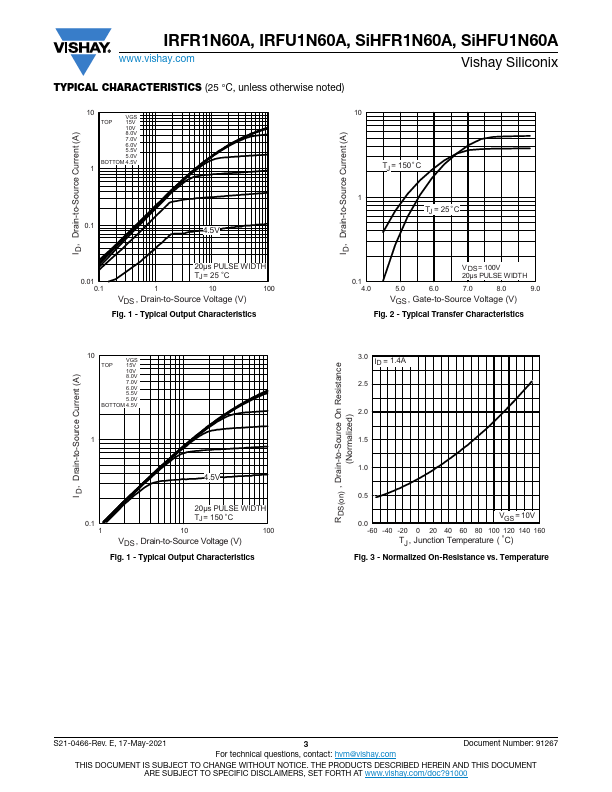

Page 2 of IRFU1N60A Page 3 of IRFU1N60A

IRFU1N60A Application

  • Applications
  • Switch Mode Power Supply (SMPS)
  • Uninterruptible Power Supply
  • Power Factor Correction TYPICAL SMPS TOPOLOG

TAGS

IRFU1N60A
Power
MOSFET
Vishay Siliconix
