IRL540

Power MOSFET

Vishay Siliconix

IRL540 Features

* Dynamic dV/dt rating

* Repetitive avalanche rated Available

* Logic-level gate drive

* RDS(on) specified at VGS = 4 V and 5 V

* 175 °C operating temperature Available

* Fast switching

* Ease of paralleling

* Material categoriz

IRL540 General Description

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to app.

IRL540 Datasheet (230.63 KB)

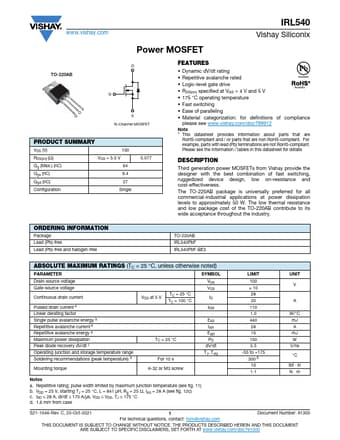

IRL540 Datasheet Preview — Preview of IRL540 PDF

Datasheet Details

Part number:

IRL540

Manufacturer:

Vishay ↗ Siliconix

File Size:

230.63 KB

Description:

Power mosfet.
www.vishay.com IRL540 Vishay Siliconix Power MOSFET D TO-220AB S D G G S N-Channel MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 100 VGS = 5.0 V .
