IRL540A - Advanced Power MOSFET

Product Overview

Fairchild

📥 Download Datasheet

IRL540A Advanced Power MOSFET by Fairchild - Datasheet Preview — Datasheet preview – IRL540A

Datasheet Details

Part number	IRL540A
Manufacturer	Fairchild
File Size	244.46 KB
Description	Advanced Power MOSFET
Datasheet	IRL540A Datasheet
Additional preview pages of the IRL540A datasheet.

Product details

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Lower Leakage Current: 10µA (Max. ) @ VDS = 100V.

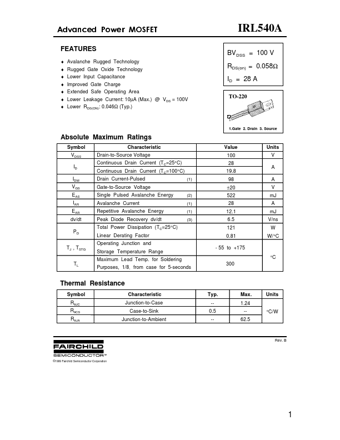

Lower RDS(ON): 0.046Ω (Typ. ) 1 2 3 IRL540A BVDSS = 100 V RDS(on) = 0.058Ω ID = 28 A TO-220 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous.
