IRLR120A - N-CHANNEL MOSFET

Product Overview

Fairchild

📥 Download Datasheet

IRLR120A N-CHANNEL MOSFET by Fairchild - Datasheet Preview — Datasheet preview – IRLR120A

Datasheet Details

Part number	IRLR120A
Manufacturer	Fairchild
File Size	225.83 KB
Description	N-CHANNEL MOSFET
Datasheet	IRLR120A Datasheet

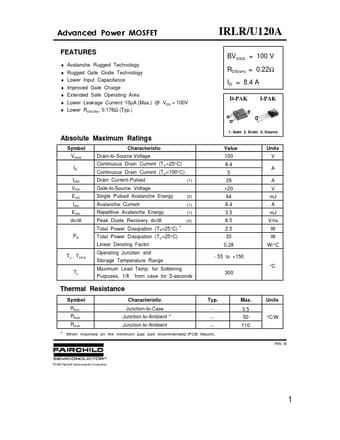

Additional preview pages of the IRLR120A datasheet.

Product details

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Lower Leakage Current: 10µA (Max. ) @ VDS = 100V.
Lower RDS(ON): 0.176Ω (Typ. ) IRLR/U120A BVDSS = 100 V RDS(on) = 0.22Ω ID = 8.4 A D-PAK 2 1 3 1 I-PAK 2 3 1. Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD Characteristic Drain-to-Source Voltage Conti.
