IRL530A Datasheet - Fairchild

IRL530A Advanced Power MOSFET

IRL530A Features

* n Avalanche Rugged Technology n Rugged Gate Oxide Technology n Lower Input Capacitance n Improved Gate Charge n Extended Safe Operating Area n Lower Leakage Current : 10 μA (Max.) @ VDS = 100V n Lower RDS(ON) : 0.101Ω (Typ.) IRL530A BVDSS = 100 V RDS(on) = 0.12Ω ID = 14 A TO-220 1 2 3 1.Gate 2. D

IRL530A_Fairchild.pdf

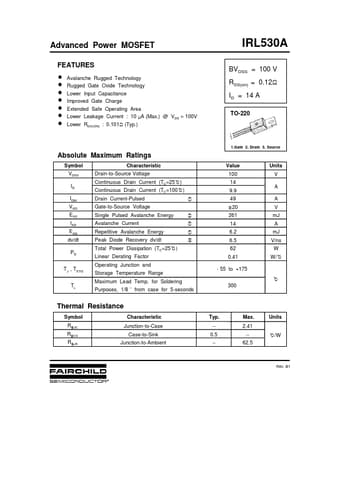

Preview of IRL530A PDF
IRL530A Datasheet Preview Page 2 IRL530A Datasheet Preview Page 3

Datasheet Details

Part number:

IRL530A

Manufacturer:

Fairchild

File Size:

233.97 KB

Description:

Advanced power mosfet.
