IRL530N, HEXFET Power MOSFET

PD - 91348C IRL530N l l l l l l Logic-Level Gate Drive Advanced Process Technology Dynamic dv/dt Rating 175°C Operating Temperature Fast Switching F.
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area.

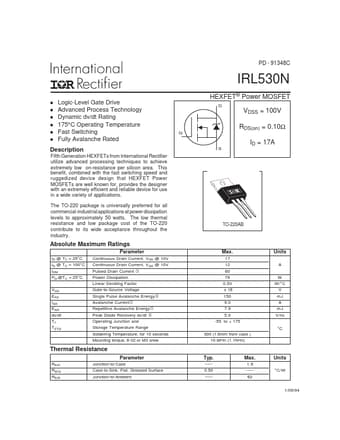

datasheet Preview Page 1 from Datasheet4u.com

IRL530N_IRF.pdf

IRL530N Datasheet Preview — Preview of IRL530N PDF

Datasheet Details

Part number:

IRL530N

Manufacturer:

IRF

File Size:

193.79 KB

Description:

HEXFET Power MOSFET

Features

* 14.09 (.555) 13.47 (.530) 2 - DRAIN 1- GATE 3 - SOURCE 2- DRAIN 3- SOURCE 4 - DRAIN 4- DRAIN 4.06 (.160) 3.55 (.140) 3X 1.40 (.055) 3X 1.15 (.045) 2.54 (.100) 0.93 (.037) 0.69 (.027) M B A M 3X 0.55 (.022) 0.46 (.018) 0.36 (.014) 2.92 (.115) 2.64 (.104) 2X NOTES: 1 DIMENSIONING & TOLERANCI

Applications

* The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry. TO-220AB Absolute Maximum Ratings
