IRL520A - Advenced Power MOSFET

Product Overview

Fairchild

📥 Download Datasheet

IRL520A Advenced Power MOSFET by Fairchild - Datasheet Preview — Datasheet preview – IRL520A

Datasheet Details

Part number	IRL520A
Manufacturer	Fairchild
File Size	227.09 KB
Description	Advenced Power MOSFET
Datasheet	IRL520A Datasheet
Additional preview pages of the IRL520A datasheet.

Product details

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Lower Leakage Current: 10µA (Max. ) @ VDS = 100V.

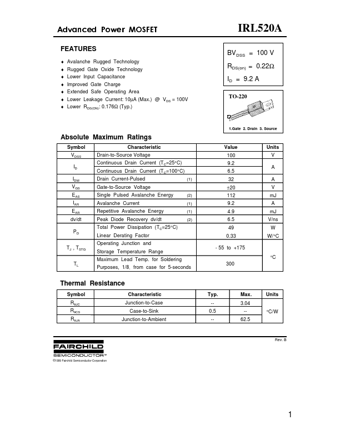

Lower RDS(ON): 0.176Ω (Typ. ) 1 2 3 IRL520A BVDSS = 100 V RDS(on) = 0.22Ω ID = 9.2 A TO-220 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous.
