IRL520NS Datasheet, Mosfet, International Rectifier

IRL520NS Features

• Mosfet t V(BR)DSS tp VDD VDS 40 0 25 50 75 100 125 150 A 175 S tarting T J , J unc tion T em perature (°C ) IAS Fig 12c. Maximum Avalanche Energy Vs. Drain Current Fig 12b. Unclamped In

PDF File Details

Part number:

IRL520NS

Manufacturer:

International Rectifier

File Size:

201.89kb

Download:

📄 Datasheet

Description:

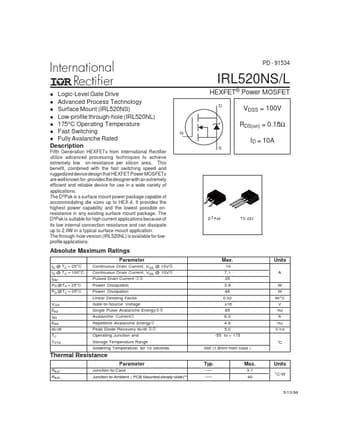

Power mosfet. l HEXFET® Power MOSFET D VDSS = 100V RDS(on) = 0.18Ω G ID = 10A S Fifth Generation HEXFETs from International Rectifier utilize

IRL520NS Application

• Applications The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability an
