IRL520 Datasheet, mosfet equivalent, Vishay

IRL520 Features

  • Mosfet
  • Dynamic dV/dt rating
  • Repetitive avalanche rated Available
  • Logic-level gate drive
  • RDS(on) specified at VGS = 4 V and 5 V
  • 175 °C oper

PDF File Details

Part number:

IRL520

Manufacturer:

Vishay ↗

File Size:

236.46kb

Download:

📄 Datasheet

Description:

Power mosfet. Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design

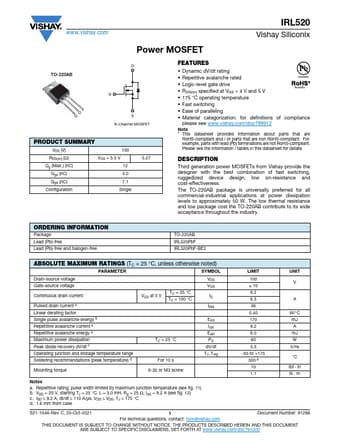

Datasheet Preview: IRL520 📥 Download PDF (236.46kb)
Page 2 of IRL520 Page 3 of IRL520

IRL520 Application

  • Applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost the TO-220AB contribute to its wide
