SI4204DY Dual N-Channel MOSFET

SI4204DY Description

Dual N-Channel 20 V MOSFET Si4204DY Vishay Siliconix PRODUCT SUMMARY VDS (V) 20 RDS(on) (Ω) 0.0046 at VGS = 10 V 0.006 at VGS = 4.5 V ID (A) 19.8.

SI4204DY Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested

SI4204DY Applications

* D1 D2
* DC/DC Converter
* Fixed Telecom
* Notebook PC G1 G2 Top View Ordering Information: Si4204DY-T1-GE3 (Lead (Pb)-free and Halogen-free) S1 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate

📥 Download Datasheet

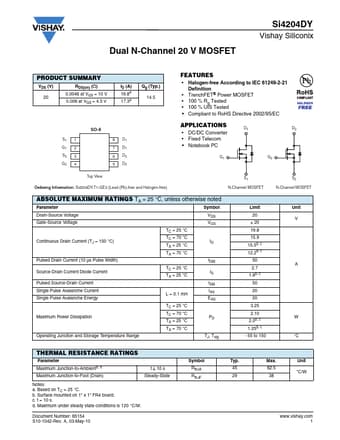

Preview of SI4204DY PDF
datasheet Preview Page 2 datasheet Preview Page 3
