SI4209 - Transceiver

Silicon Laboratories

📥 Download Datasheet

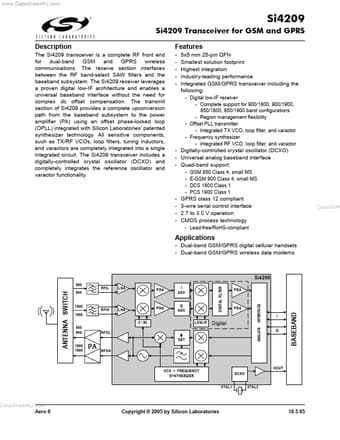

SI4209 Datasheet Preview — Preview of SI4209 PDF

datasheet Preview Page 2

Datasheet Details

Part number: SI4209
Manufacturer: Silicon Laboratories
File Size: 232.69 KB
Datasheet: SI4209_SiliconLaboratories.pdf
Description: Transceiver

SI4209 Product details

Description

The Si4209 transceiver is a complete RF front end for dual-band GSM and GPRS wireless communications.

Features

5x5 mm 25-pin QFN Smallest solution footprint Highest integration Industry-leading performance Integrated GSM/GPRS transceiver including the following: - Digital low-IF receiver - Complete support for 900/1800, 900/1900, 850/1800, 850/1900 band configurations - Region management flexibility - Offset PLL transmitter - Integrated TX VCO, loop filter, and varactor - Frequency synthesizer - Integrated RF VCO, loop filter, and varactor - Digitally-controlled crystal oscillator (DCXO) - Universal an.
