SI4200DY, Dual N-Channel MOSFET

www.DataSheet.co.kr Si4200DY Vishay Siliconix Dual N-Channel 25 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 25 RDS(on) (Ω) 0.025 at VGS = 10 V 0.030 at V.

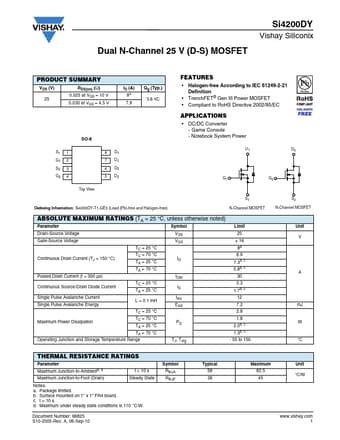

datasheet Preview Page 1 from Datasheet4u.com

SI4200DY_VishaySiliconix.pdf

SI4200DY Datasheet Preview — Preview of SI4200DY PDF

Datasheet Details

Part number:

SI4200DY

Manufacturer:

Vishay ↗ Siliconix

File Size:

317.36 KB

Description:

Dual N-Channel MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Gen III Power MOSFET

Applications

* DC/DC Converter - Game Console - Notebook System Power 8 7 6 5 Top View S1 S2 N-Channel MOSFET D1 D1 D2 D2 G1 G2 D1 D2 SO-8 S1 G1 S2 G2 1 2 3 4 Ordering Information: Si4200DY-T1-GE3 (Lead (Pb)-free and Halogen-free) N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwis
