SUB85N03-07P Datasheet - Vishay Siliconix

SUB85N03-07P N-Channel MOSFET

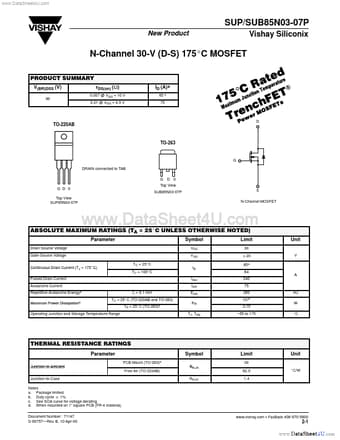

www.DataSheet4U.com SUP/SUB85N03-07P New Product Vishay Siliconix N-Channel 30-V (D-S) 175_C MOSFET PRODUCT SUMMARY V(BR)DSS (V) 30 rDS(on) (W) 0.007 @ VGS = 10 V 0.01 @ VGS = 4.5 V ID (A)a 85 a 75 TO-220AB D TO-263 G DRAIN connected to TAB G G D S Top View SUP85N03-07P D S S N-Channel MOSFET Top View SUB85N03-07P ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175_C) Pulsed Drain Current Ava.

SUB85N03-07P_VishaySiliconix.pdf
