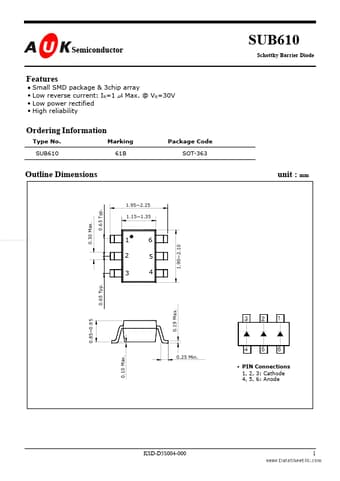

SUB610 - Schottky Barrier Diode

AUK

Datasheet Details

Small SMD package & 3chip array Low reverse current: IR=1 ㎂ Max. @ VR=30V Low power rectified High reliability Ordering Information Type No. SUB610 Marking 61B Package Code SOT-363 Outline Dimensions unit : mm 1.95~2.25 0.65 Typ. 1.15~1.35 0.30 Max. www. DataSheet4U. com 1 2 3 0.65 Typ. 6 5 4 1.90~2.10 0.19 Max. 1 2 3 0.85~0.95 4 5 6 0.10 Max. 0.25 Min.
PIN Connections 1, 2, 3: Cathode 4, 5, 6: Anode KSD-D5S004-000 1 SUB610 Abs.
