VSKC320 Datasheet - Vishay Siliconix

Standard Recovery Diodes

VSKC320 Features

* High voltage

* Electrically isolated base plate

* 3000 VRMS isolating voltage

* Industrial standard package

* Simplified mechanical designs, rapid assembly

* High surge capability

* Large creepage distances MAGN-A-PAKTM RoHS COMPLIANT

VSKC320 General Description

This new VSK series of MAGN-A-PAKsTM uses high voltage power diodes in two basic configurations. The semiconductors are electrically isolated from the metal base, allowing common heatsinks and compact assemblies to be built. They can be interconnected to form single phase or three phase bridges and .

VSKC320 Datasheet (346.69 KB)

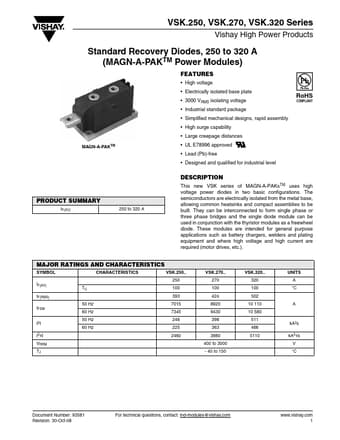

VSKC320 Datasheet Preview — Preview of VSKC320 PDF

Datasheet Details

Part number:

VSKC320

Manufacturer:

Vishay ↗ Siliconix

File Size:

346.69 KB

Description:

Standard recovery diodes.
www.DataSheet.co.kr VSK.250, VSK.270, VSK.320 Series Vishay High Power Products Standard Recovery Diodes, 250 to 320 A (MAGN-A-PAKTM Power Modules) .
