VSKC91xxPxx, VSKD91xxPBF Datasheet - Vishay Siliconix

VSKC91xxPxx Standard Diodes

The Generation 5 of ADD-A-PAK module combine the excellent thermal performance obtained by the usage of direct bonded copper substrate with superior rmechanical ruggedness, thanks to the insertion of a solid copper baseplate at the bottom side of the device. The Cu baseplate allow an easier mounting.

VSKC91xxPxx Features

* High voltage

* Industrial standard package

* Thick copper baseplate

* UL E78996 approved

* 3500 VRMS isolating voltage ADD-A-PAK

* Totally lead (Pb)-free

* Designed and qualified for industrial level PRODUCT SUMMARY IF(AV) 100 A BENEFITS

VSKD91xxPBF_VishaySiliconix.pdf

This datasheet PDF includes multiple part numbers: VSKC91xxPxx, VSKD91xxPBF. Please refer to the document for exact specifications by model.

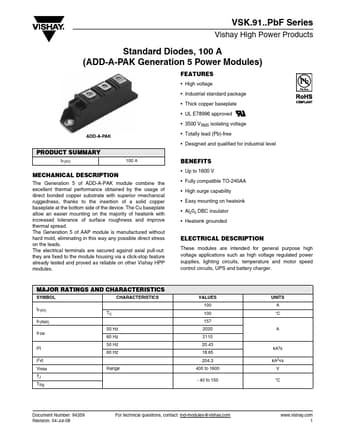

VSKC91xxPxx Datasheet Preview Page 2 VSKC91xxPxx Datasheet Preview Page 3

Datasheet Details

Part number:

VSKC91xxPxx, VSKD91xxPBF

Manufacturer:

Vishay ↗ Siliconix

File Size:

256.63 KB

Description:

Standard diodes.

Note:

This datasheet PDF includes multiple part numbers: VSKC91xxPxx, VSKD91xxPBF.
Please refer to the document for exact specifications by model.
