VSKC91-10P, VSKE91-10P, Power Modules Standard Diodes

VSKD91.., VSKC91.., VSKJ91.., VSKE91..Series www.vishay.com Vishay Semiconductors ADD-A-PAK Generation VII Power Modules Standard Diodes, 100 A A.
The ADD-A-PAK generation VII, new generation of ADD-A-PAK module, combines the excellent thermal performances obtained by the usage of exposed direct.

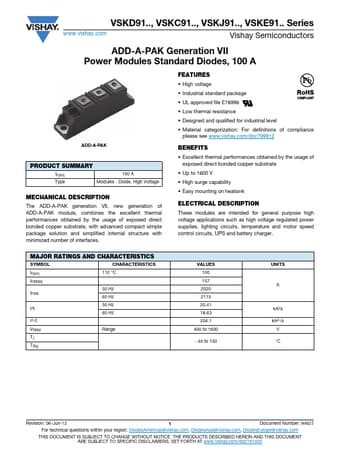

datasheet Preview Page 1 from Datasheet4u.com

VSKE91-10P-Vishay.pdf

VSKC91-10P Datasheet Preview — This datasheet PDF includes multiple part numbers: VSKC91-10P, VSKE91-10P. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VSKC91-10P, VSKE91-10P

Manufacturer:

Vishay ↗

File Size:

259.07 KB

Description:

Power Modules Standard Diodes

Note:

This datasheet PDF includes multiple part numbers: VSKC91-10P, VSKE91-10P.
Please refer to the document for exact specifications by model.

Features

* High voltage
* Industrial standard package
* UL approved file E78996
* Low thermal resistance
* Designed and qualified for industrial level
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 BENEFITS

Applications

* such as high voltage regulated power supplies, lighting circuits, temperature and motor speed control circuits, UPS and battery charger. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) IF(RMS) IFSM 112 °C 50 Hz 60 Hz 50 Hz I2t 60 Hz I2√t VRRM TJ TStg Range VALUES 100 157 20
