BA604 Datasheet - Vishay Telefunken

BA604 Silicon Planar Diode

BA604 Vishay Telefunken Silicon Planar Diode Applications General purpose 94 9371 Absolute Maximum Ratings Tj = 25_C Parameter Peak reverse voltage, non repetitive Reverse voltage Peak forward surge current Repetitive peak forward current Forward current Power dissipation Junction temperature Storage temperature range Test Conditions Type Symbol VRSM VR IFSM IFRM IF PV Tj Tstg Value 80 50 2 450 200 500 175 55+175 Unit V V A mA mA mW °C °C tp=1ms Maximum Thermal Resistance Tj = 25_.

BA604_VishayTelefunken.pdf

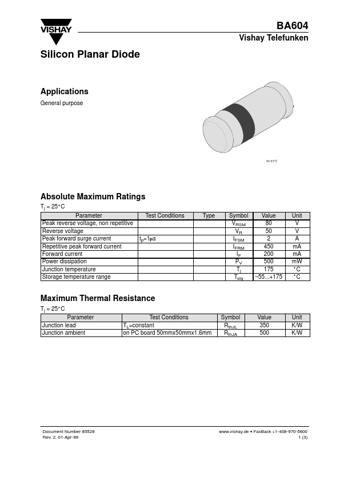

Preview of BA604 PDF
BA604 Datasheet Preview Page 2 BA604 Datasheet Preview Page 3

Datasheet Details

Part number:

BA604

Manufacturer:

Vishay ↗ Telefunken

File Size:

43.45 KB

Description:

Silicon planar diode.
