S186P Datasheet - Vishay Telefunken

Silicon PIN Photodiode

S186P Features

* D D D D D D D Fast response times Small junction capacitance High radiant sensitivity Large radiant sensitive area A=7.5 mm2 Wide angle of half sensitivity ϕ = ± 65° Plastic case with IR filter (950 mm) Suitable for near infrared radiation 94 8490 Applications High speed photo detector Absolute Ma

S186P General Description

S186P is a high speed and high sensitive PIN photodiode in a flat side view plastic package. The epoxy package itself is an IR filter, spectrally matched to GaAs or GaAs on GaAlAs IR emitters (l p 900 nm). The large active area combined with a flat case gives a high sensitivity at a wide viewing ang.

S186P Datasheet (72.10 KB)

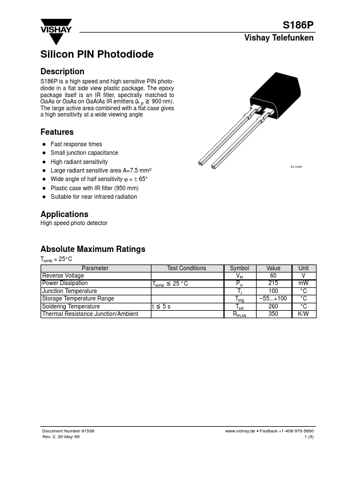

S186P Datasheet Preview — Preview of S186P PDF

Datasheet Details

Part number:

S186P

Manufacturer:

Vishay ↗ Telefunken

File Size:

72.10 KB

Description:

Silicon pin photodiode.
