S1806 Datasheet - Toshiba

S1806 Silicon PNP Transistor

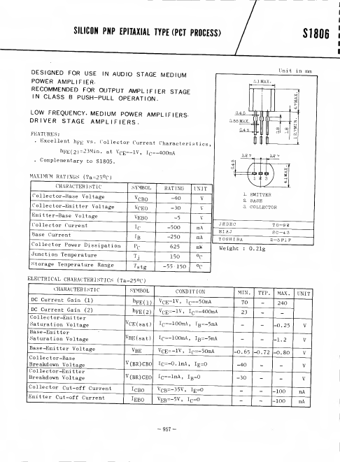

SILICON PHP EPITAXIAL TYPE (PCT PROCESS) . F S1806 DESIGNED FOR USE IN AUDIO STAGE MEDIUM POWER AMPLIFIER. RECOMMENDED FOR OUTPUT AMPLIFIER STAGE IN CLASS B PUSH-PULL OPERATION. LOW FREQUENCY, MEDIUM POWER AMPLIFIERSDRIVER STAGE AMPLIFIERS. FEATIT?ES: . Excellent h FE vs. Collector Current Characteristics, hFE(2)=23Min. at VCE =-1V, I c =-400mA . Complementary to S1805. 5.1 MAX. Unit in mm MAXIMl'M RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-B.
