TEFT4300 Silicon NPN Phototransistor

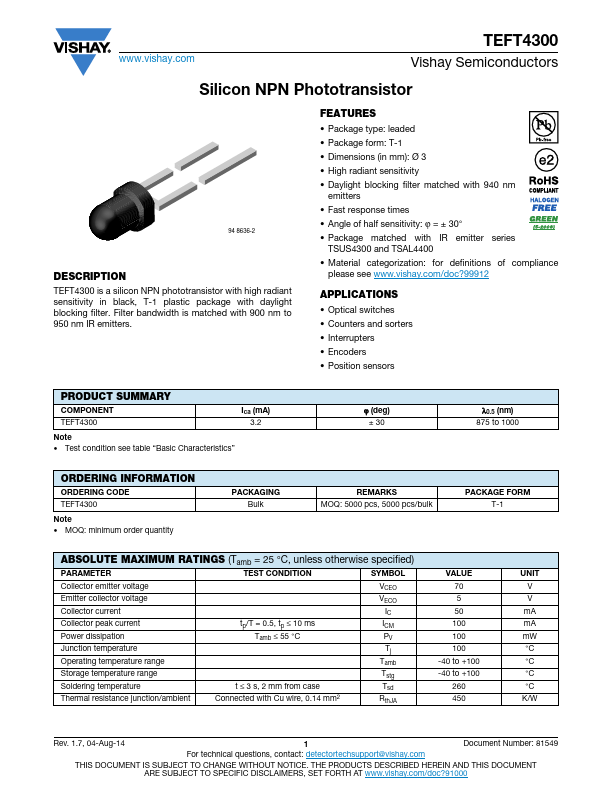

📥 Download Datasheet Datasheet Preview Page 1

Description

www.vishay.com TEFT4300 Vishay Semiconductors Silicon NPN Phototransistor 94 8636-2 .
TEFT4300 is a silicon NPN phototransistor with high radiant sensitivity in black, T-1 plastic package with daylight blocking filter.

📥 Download Datasheet

Preview of TEFT4300 PDF

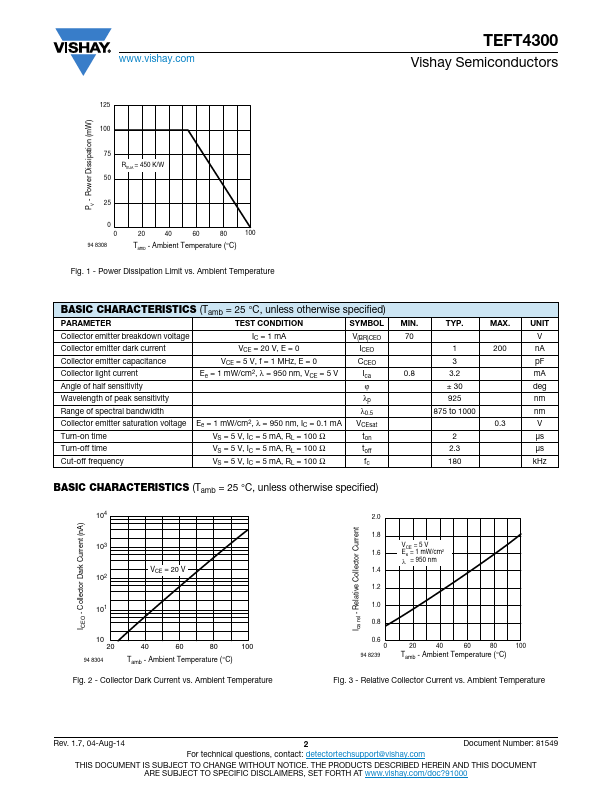

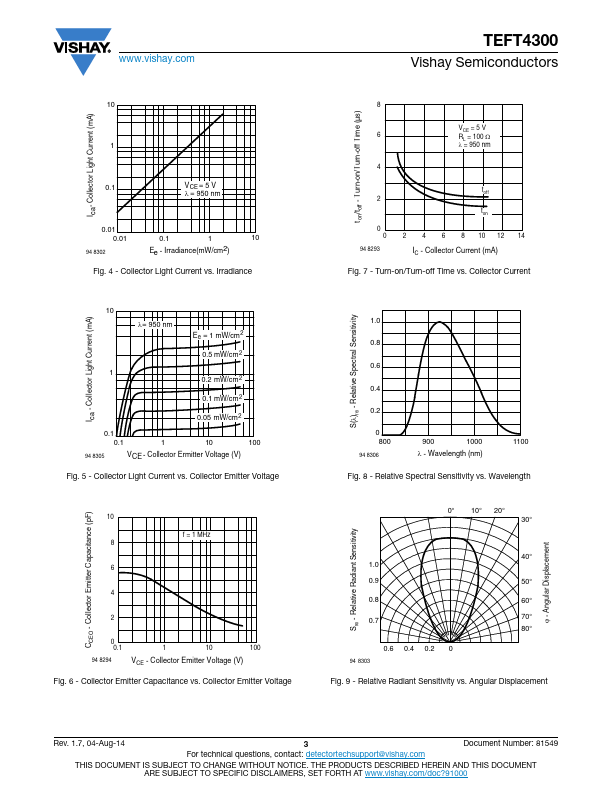

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Package type: leaded
* Package form: T-1
* Dimensions (in mm): Ø 3
* High radiant sensitivity
* Daylight blocking filter matched with 940 nm emitters
* Fast response times
* Angle of half sensitivity: ϕ = ± 30°
* Package matched with

Applications

* Optical switches
* Counters and sorters
* Interrupters
* Encoders
* Position sensors PRODUCT SUMMARY COMPONENT TEFT4300 Ica (mA) 3.2 Note
* Test condition see table “Basic Characteristics” ϕ (deg) ± 30 λ0.5 (nm) 875 to 1000 ORDERING INFORMATION

TEFT4300 Distributors
