TFMM5360 - Photo Modules

Vishay Telefunken

Datasheet Details

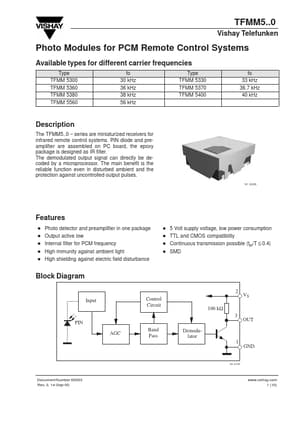

The TFMM5..0 series are miniaturized receivers for infrared remote control systems.

D Photo detector and preamplifier in one package D Output active low D Internal filter for PCM frequency D High immunity against ambient light D High shielding against electric field disturbance D 5 Volt supply voltage, low power consumption D TTL and CMOS compatibility D Continuous transmission possible (tpi/Tx0.4) D SMD Block Diagram 2 Input Control Circuit 100 kW 3 PIN AGC Band Pass Demodulator 1 GND OUT VS 94 8136 Document Number 82003 Rev. 3, 14-Sep-00 www. vishay. com 1 (10) TFMM5..0 Vi.
