TFMM5380 Datasheet - Vishay Telefunken

Photo Modules

TFMM5380 Features

* D Photo detector and preamplifier in one package D Output active low D Internal filter for PCM frequency D High immunity against ambient light D High shielding against electric field disturbance D 5 Volt supply voltage, low power consumption D TTL and CMOS compatibility D Continuous transmission pos

TFMM5380 General Description

The TFMM5..0 * series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on PC board, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the reliable .

TFMM5380 Datasheet (122.52 KB)

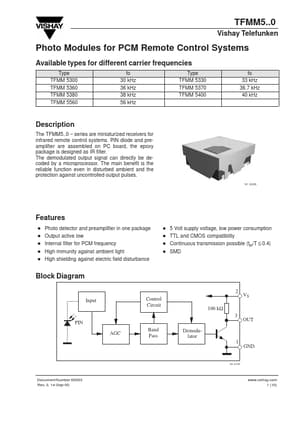

TFMM5380 Datasheet Preview — Preview of TFMM5380 PDF

Datasheet Details

Part number:

TFMM5380

Manufacturer:

Vishay ↗ Telefunken

File Size:

122.52 KB

Description:

Photo modules.
TFMM5..0 Vishay Telefunken Photo Modules for PCM Remote Control Systems Available types for different carrier frequencies Type TFMM 5300 TFMM 5360 TF.
