TLWBG7600 - TELUXE

Datasheet Summary

Description

The TELUX™ series is a clear, non diffused LED for high end applications where supreme luminous flux is required.

It is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) AllnGaP and InGaN technologies.

Features

  • D D D D D Utilizing (AS) AllnGaP and InGaN technologies High luminous flux Supreme heat dissipation: RthJP is 90 K/W High operating temperature: Tj up to + 125 °C Type TLWR meets SAE and ECE color requirements D Luminous flux and color categorized for each tube D Small mechanical tolerances allow precise usage of external reflectors or lightguides D TLWR types additionally forward voltage categorized D Packed in tubes for automatic insertion.

📥 Download Datasheet

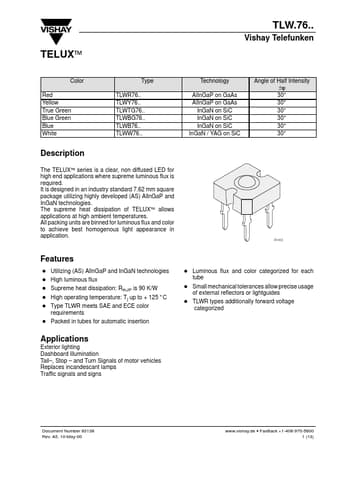

Datasheet preview – TLWBG7600

Datasheet Details

Part number TLWBG7600
Manufacturer Vishay Telefunken
File Size 119.22 KB
Description TELUXE
Datasheet download datasheet TLWBG7600 Datasheet
Additional preview pages of the TLWBG7600 datasheet.

📁 Similar Datasheet

  • TLWBG7900 - TELUX LED (Vishay Siliconix)
  • TLWBG8600 - TELUX LED (Vishay Siliconix)
  • TLWBG8900 - TELUX LED (Vishay Siliconix)
  • TLWD1060 - LED Lamp (Toshiba Semiconductor)
  • TLWD1060T18 - LED Lamp (Toshiba Semiconductor)
  • TLWD1100 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWD1100T11 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWJ1100 - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWK1100B - Panel Circuit Indicator (Toshiba Semiconductor)
  • TLWLF1100C - LED Lamp (Toshiba)
Other Datasheets by Vishay Telefunken

Full PDF Text Transcription

Click to expand full text
TLW.76.. Vishay Telefunken TELUX™ Color Red Yellow True Green Blue Green Blue White Type TLWR76.. TLWY76.. TLWTG76.. TLWBG76.. TLWB76.. TLWW76.. Technology AlInGaP on GaAs AlInGaP on GaAs InGaN on SiC InGaN on SiC InGaN on SiC InGaN / YAG on SiC Angle of Half Intensity ±ö 30° 30° 30° 30° 30° 30° Description The TELUX™ series is a clear, non diffused LED for high end applications where supreme luminous flux is required. It is designed in an industry standard 7.62 mm square package utilizing highly developed (AS) AllnGaP and InGaN technologies. The supreme heat dissipation of TELUX™ allows applications at high ambient temperatures. All packing units are binned for luminous flux and color to achieve best homogenous light appearance in application.
