2N5460 Datasheet, Jfets, Vishay

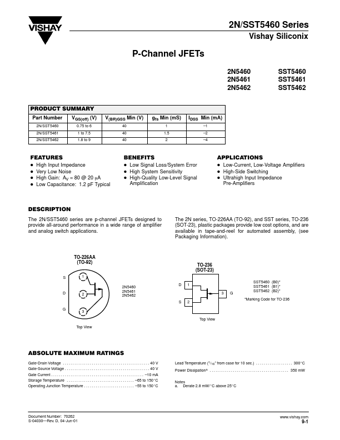

2N5460 Features

• Jfets D High Input Impedance D Very Low Noise D High Gain: AV = 80 @ 20 mA D Low Capacitance: 1.2 pF Typical BENEFITS D Low Signal Loss/System Error D High System Sensitivity D High-Quality

PDF File Details

Part number:

2N5460

Manufacturer:

Vishay ↗

File Size:

38.24kb

Download:

📄 Datasheet

Description:

P-channel jfets. The 2N/SST5460 series are p-channel JFETs designed to provide all-around performance in a wide range of amplifier and analog switch a

2N5460 Application

• Applications D Low-Current, Low-Voltage Amplifiers D High-Side Switching D Ultrahigh Input Impedance Pre-Amplifiers DESCRIPTION The 2N/SST5460 seri
