2W005G, Glass Passivated Single-Phase Bridge Rectifier

2W005G, 2W01G, 2W02G, 2W04G, 2W06G, 2W08G, 2W10G www.vishay.com Vishay General Semiconductor Glass Passivated Single-Phase Bridge Rectifier + ~ .

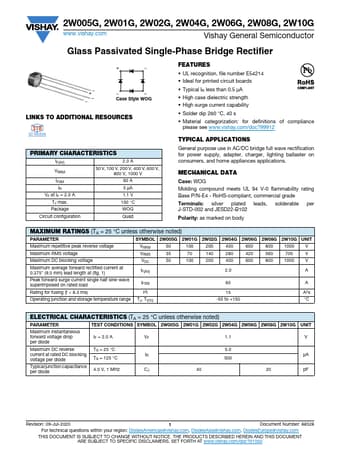

datasheet Preview Page 1 from Datasheet4u.com

2W005G-Vishay.pdf

2W005G Datasheet Preview — Preview of 2W005G PDF

Datasheet Details

Part number:

2W005G

Manufacturer:

Vishay ↗

File Size:

84.77 KB

Description:

Glass Passivated Single-Phase Bridge Rectifier

Features

* UL recognition, file number E54214
* Ideal for printed circuit boards
* Typical IR less than 0.5 μA
* High case dielectric strength
* High surge current capability
* Solder dip 260 °C, 40 s
* Material categorization: for definitions of compli

Applications

* General purpose use in AC/DC bridge full wave rectification for power supply, adapter, charger, lighting ballaster on consumers, and home appliances applications. MECHANICAL DATA Case: WOG Molding compound meets UL 94 V-0 flammability rating Base P/N-E4 - RoHS-compliant, commercial grade Terminals:
