2W08G, 2W005G Glass Passivated Single-Phase Bridge Rectifier

2W08G Description

2W005G, 2W01G, 2W02G, 2W04G, 2W06G, 2W08G, 2W10G www.vishay.com Vishay General Semiconductor Glass Passivated Single-Phase Bridge Rectifier + ~ .

2W08G Features

* UL recognition, file number E54214
* Ideal for printed circuit boards
* Typical IR less than 0.5 μA
* High case dielectric strength
* High surge current capability
* Solder dip 260 °C, 40 s
* Material categorization: for definitions of compli

2W08G Applications

* General purpose use in AC/DC bridge full wave rectification for power supply, adapter, charger, lighting ballaster on consumers, and home appliances applications. MECHANICAL DATA Case: WOG Molding compound meets UL 94 V-0 flammability rating Base P/N-E4 - RoHS-compliant, commercial grade Terminals:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2W08G, 2W005G. Please refer to the document for exact specifications by model.

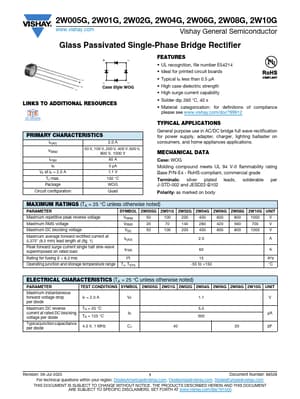

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2W08G, 2W005G
Manufacturer
Vishay ↗
File Size
84.77 KB
Datasheet
2W005G-Vishay.pdf
Description
Glass Passivated Single-Phase Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: 2W08G, 2W005G.
Please refer to the document for exact specifications by model.
