BAT42WS Small Signal Schottky Diode

BAT42WS Description

www.vishay.com BAT42WS, BAT43WS Vishay Semiconductors Small Signal Schottky Diode DESIGN SUPPORT TOOLS click logo to get started Models Available M.

BAT42WS Features

* These diodes feature very low turn-on voltage and fast switching. These devices are protected by a PN junction guard ring against excessive voltage, such as electrostatic discharges

BAT42WS Applications

* AEC-Q101 qualified available
* Base P/N-E3 - RoHS-compliant, commercial grade
* Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 PARTS TABLE PART BAT42WS BAT43WS ORDERING

📥 Download Datasheet

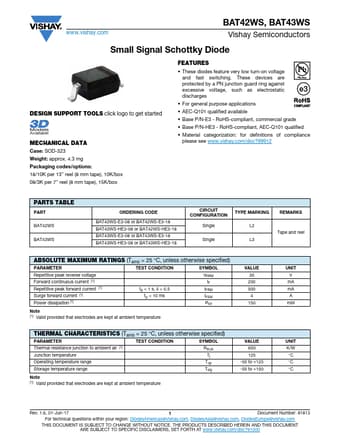

Preview of BAT42WS PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAT42WS
Manufacturer
Vishay ↗
File Size
81.07 KB
Datasheet
BAT42WS-Vishay.pdf
Description
Small Signal Schottky Diode
