BPW76B, BPW76A, Silicon NPN Phototransistor

BPW76A, BPW76B Vishay Semiconductors Silicon NPN Phototransistor, RoHS Compliant 94 8401 .
BPW76 is a silicon NPN phototransistor with high radiant sensitivity in hermetically sealed TO-18 package with base terminal and flat glass window.

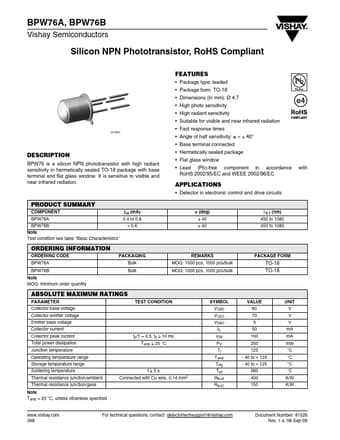

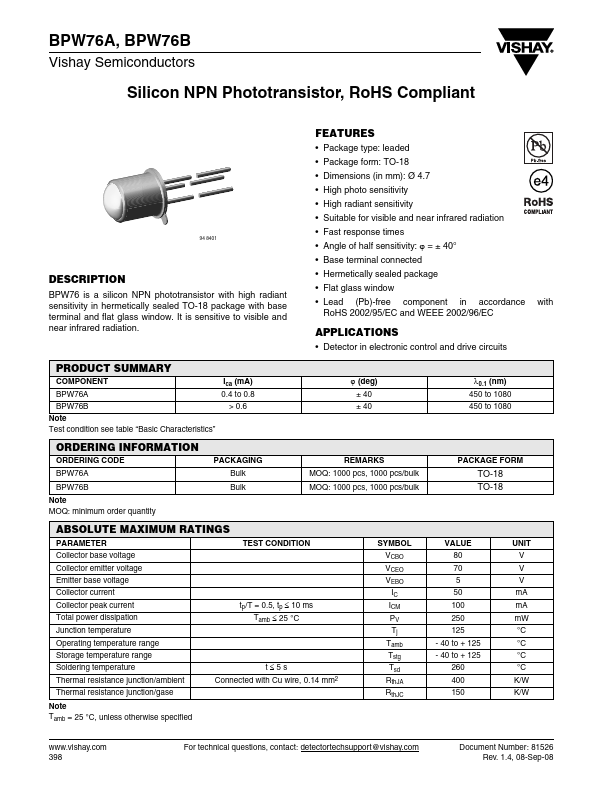

datasheet Preview Page 1 from Datasheet4u.com

BPW76A-Vishay.pdf

BPW76B Datasheet Preview — This datasheet PDF includes multiple part numbers: BPW76B, BPW76A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BPW76B, BPW76A

Manufacturer:

Vishay ↗

File Size:

136.79 KB

Description:

Silicon NPN Phototransistor

Note:

This datasheet PDF includes multiple part numbers: BPW76B, BPW76A.
Please refer to the document for exact specifications by model.

Features

* Package type: leaded
* Package form: TO-18
* Dimensions (in mm): Ø 4.7
* High photo sensitivity
* High radiant sensitivity
* Suitable for visible and near infrared radiation
* Fast response times
* Angle of half sensitivity: ϕ = ± 40°

Applications

* Detector in electronic control and drive circuits PRODUCT SUMMARY COMPONENT BPW76A Ica (mA) 0.4 to 0.8 BPW76B > 0.6 Note Test condition see table “Basic Characteristics” ϕ (deg) ± 40 ± 40 ORDERING INFORMATION ORDERING CODE BPW76A BPW76B Note MOQ: minimum order quantity PACKAGING B
