BPW77NA - Silicon NPN Phototransistor

Vishay

📥 Download Datasheet

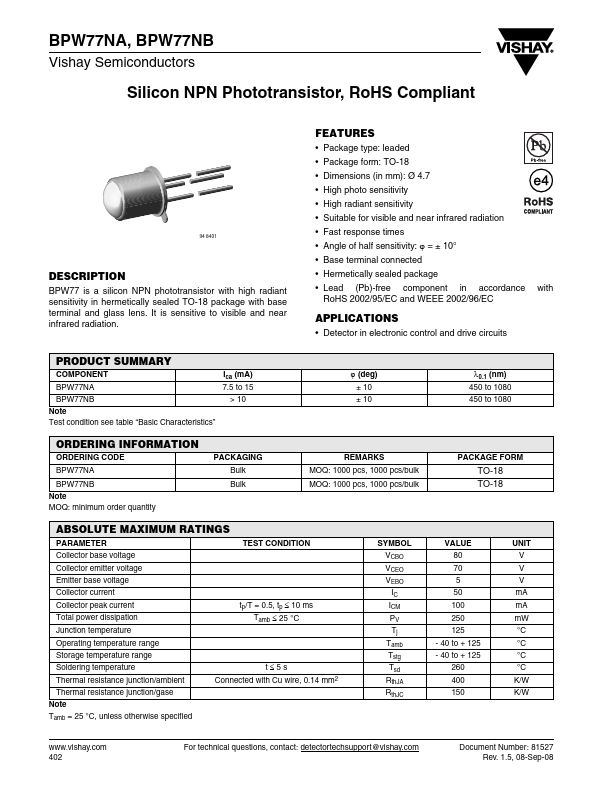

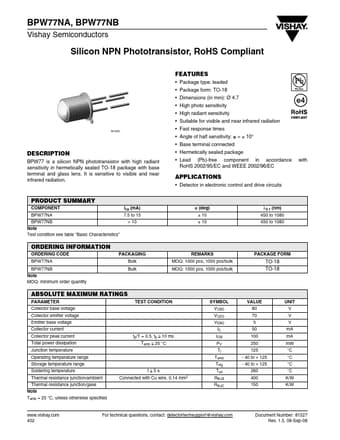

BPW77NA Datasheet Preview — Preview of BPW77NA PDF

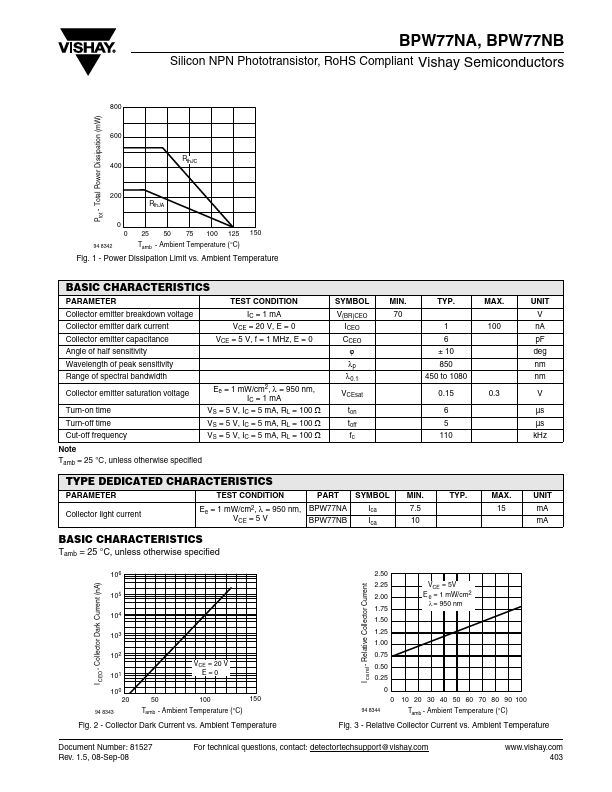

datasheet Preview Page 2

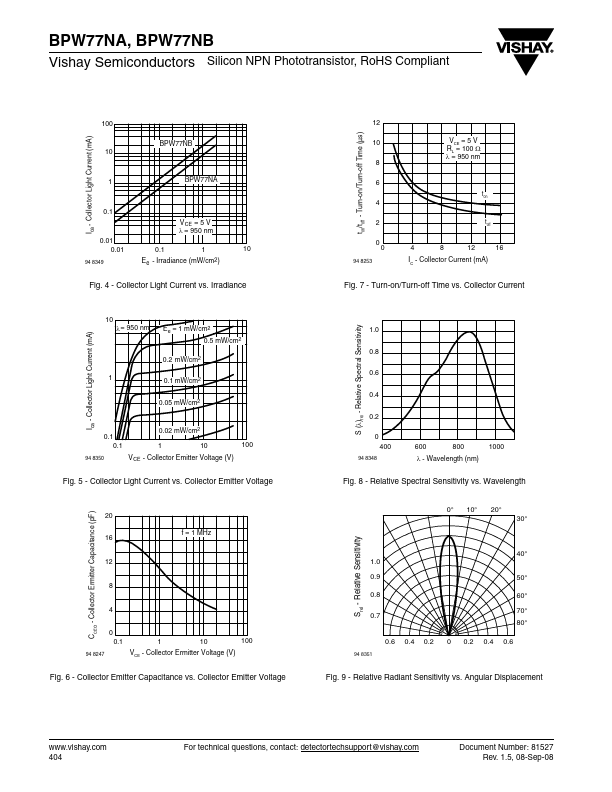

datasheet Preview Page 3

Datasheet Details

Part number: BPW77NA
Manufacturer: Vishay ↗
File Size: 136.00 KB
Datasheet: BPW77NA-Vishay.pdf
Description: Silicon NPN Phototransistor

BPW77NA Product details

Description

BPW77 is a silicon NPN phototransistor with high radiant sensitivity in hermetically sealed TO-18 package with base terminal and glass lens.

Features

Package type: leaded.
Package form: TO-18.
Dimensions (in mm): Ø 4.7.
High photo sensitivity.
High radiant sensitivity.
Suitable for visible and near infrared radiation.
Fast response times.
Angle of half sensitivity: ϕ = ± 10°.
Base terminal connected.
Hermetically sealed package.
Lead (Pb)-free component in accordance with RoHS 2002/95/EC and WEEE 2002/96/EC.
