BYV26B, BYV26A - Ultra-Fast Avalanche Sinterglass Diode

BYV26B Description

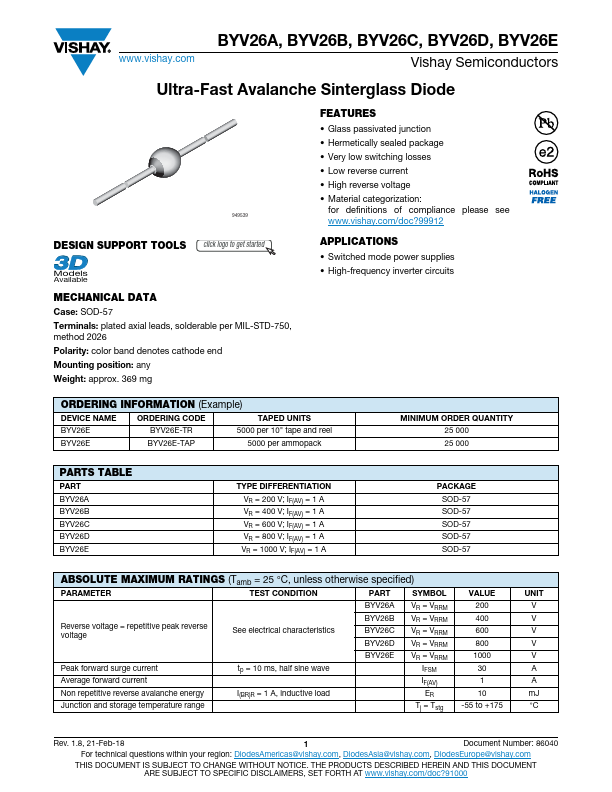

BYV26A, BYV26B, BYV26C, BYV26D, BYV26E www.vishay.com Vishay Semiconductors Ultra-Fast Avalanche Sinterglass Diode 949539 DESIGN SUPPORT TOOLS cli.

BYV26B Features

* Glass passivated junction
* Hermetically sealed package
* Very low switching losses
* Low reverse current
* High reverse voltage

BYV26B Applications

* Switched mode power supplies
* High-frequency inverter circuits         ORDERING INFORMATION (Example) DEVICE NAME ORDERING CODE TAPED UNITS BYV26E BYV26E-TR 5000 per 10" tape and reel BYV26E BYV26E-TAP 5000 per ammopack MINIMUM ORDER QUANTITY 25 000 25 000 PART

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BYV26B, BYV26A. Please refer to the document for exact specifications by model.

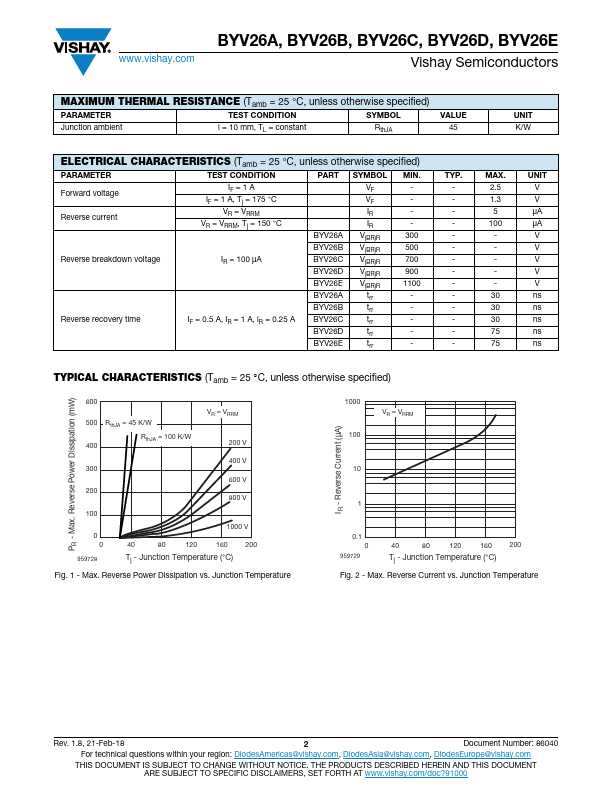

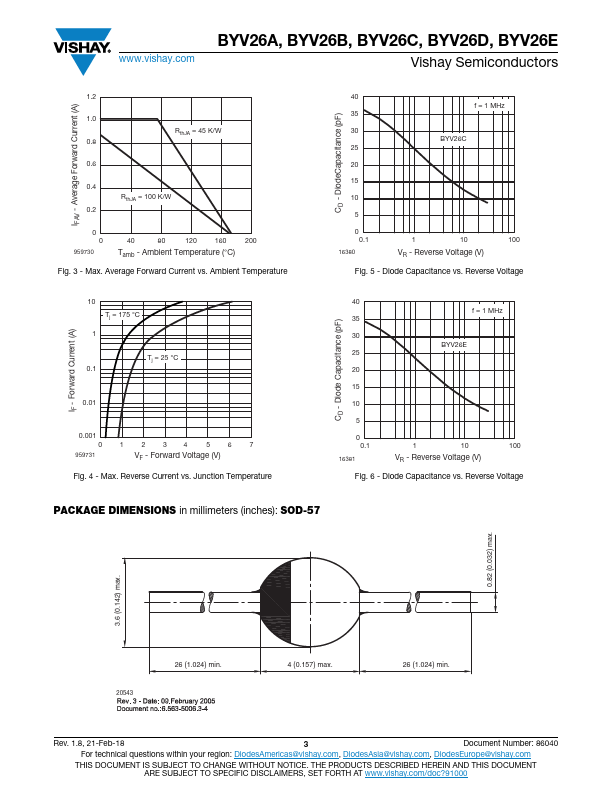

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BYV26B, BYV26A
Manufacturer
Vishay ↗
File Size
128.38 KB
Datasheet
BYV26A-Vishay.pdf
Description
Ultra-Fast Avalanche Sinterglass Diode
Note
This datasheet PDF includes multiple part numbers: BYV26B, BYV26A.
Please refer to the document for exact specifications by model.
