CNY17G-2

Optocoupler

CNY17G-2 Features

* Isolation test voltage 5000 VRMS

* Long term stability

* Industry standard dual-in-line package

* VIORM = 850 V

* Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 AGENCY APPROVALS

* UL file no. E52744

CNY17G-2 General Description

The CNY17 is an optically coupled pair consisting of a gallium arsenide infrared emitting diode optically coupled to a silicon NPN phototransitor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and outp.

CNY17G-2 Datasheet (140.46 KB)

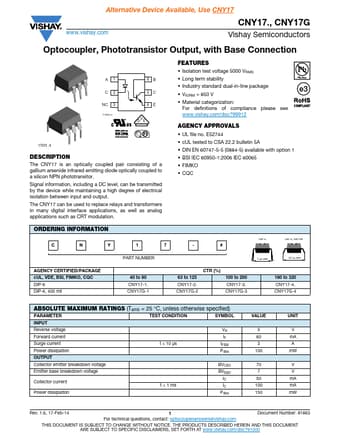

Preview of CNY17G-2 PDF

Datasheet Details

Part number:

CNY17G-2

Manufacturer:

Vishay ↗

File Size:

140.46 KB

Description:

Optocoupler.
Alternative Device Available, Use CNY17 www.vishay.com CNY17., CNY17G Vishay Semiconductors Optocoupler, Phototransistor Output, with Base Connecti.
