CNY17G-3 Optocoupler

The CNY17 is an optically coupled pair consisting of a gallium arsenide infrared emitting diode optically coupled to a silicon NPN phototransitor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and outp.

CNY17G-3 Features

* Isolation test voltage 5000 VRMS

* Long term stability

* Industry standard dual-in-line package

* VIORM = 850 V

* Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 AGENCY APPROVALS

* UL file no. E52744

CNY17G-Vishay.pdf

This datasheet PDF includes multiple part numbers: CNY17G-3, CNY17G. Please refer to the document for exact specifications by model.

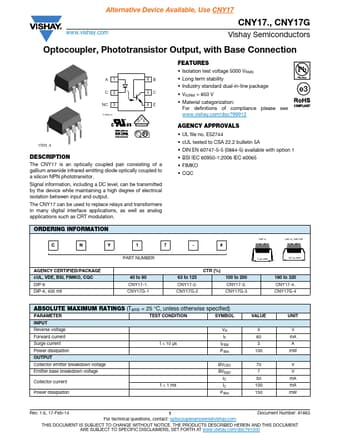

CNY17G-3 Datasheet Preview Page 2 CNY17G-3 Datasheet Preview Page 3

Datasheet Details

Part number:

CNY17G-3, CNY17G

Manufacturer:

Vishay ↗

File Size:

140.46 KB

Description:

Optocoupler.

Note:

This datasheet PDF includes multiple part numbers: CNY17G-3, CNY17G.
Please refer to the document for exact specifications by model.
