DG308A Datasheet - Vishay

DG308A Quad Monolithic SPST CMOS Analog Switches

Featuring low on-resistance (60 ) and fast switching (130 ns), the DG308A is supplied in the “normally open” configuration while DG309 is supplied “normally closed”. Input thresholds are high voltage CMOS compatible. Designed with the Vishay Siliconix PLUS-40 CMOS process to combine low power dissi.

DG308A Features

* ± 15 V analog input range

* Low on-resistance: 60 

* Fast switching: 130 ns

* Low power dissipation: 30 nW

* CMOS logic compatible BENEFITS

* Full rail-to-rail analog signal range

* Low signal error

* Wide dynamic range

* Sin

DG308A-Vishay.pdf

Preview of DG308A PDF

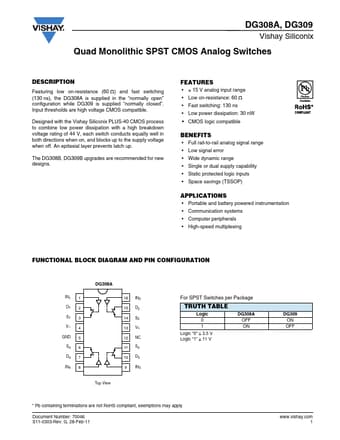

DG308A Datasheet Preview Page 2 DG308A Datasheet Preview Page 3

Datasheet Details

Part number:

DG308A

Manufacturer:

Vishay ↗

File Size:

208.78 KB

Description:

Quad monolithic spst cmos analog switches.
