FEP30JP, FEP30AP Dual Common Cathode Ultrafast Rectifier

FEP30JP Description

FEP30AP thru FEP30JP Vishay General Semiconductor Dual Common Cathode Ultrafast Rectifier 3 2 1 TO-247AD (TO-3P) PIN 1 PIN 3 PIN 2 CASE PRIMARY CH.

FEP30JP Features

* Glass passivated chip junction
* Ultrafast recovery time
* Low switching losses, high efficiency
* Low thermal resistance
* High forward surge capability
* Solder dip 260 °C, 40 s
* Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/

FEP30JP Applications

* For use in high frequency rectifier of switching mode power supplies, inverters, freewheeling diodes, dc-to-dc converters, and other power switching application. MECHANICAL DATA Case: TO-247AD (TO-3P) Epoxy meets UL 94 V-0 flammability rating Terminals: Matte tin plated leads, solderable per J-STD-0

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FEP30JP, FEP30AP. Please refer to the document for exact specifications by model.

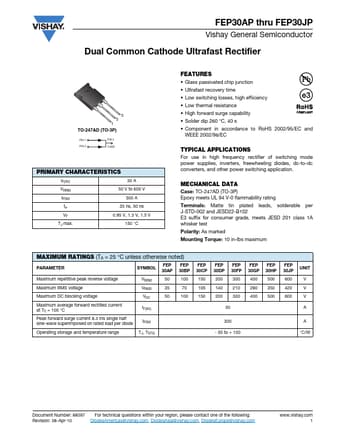

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FEP30JP, FEP30AP
Manufacturer
Vishay ↗
File Size
71.14 KB
Datasheet
FEP30AP-Vishay.pdf
Description
Dual Common Cathode Ultrafast Rectifier
Note
This datasheet PDF includes multiple part numbers: FEP30JP, FEP30AP.
Please refer to the document for exact specifications by model.
