GI1002 - Ultra Fast Sinterglass Diode

Product Overview

Vishay

📥 Download Datasheet

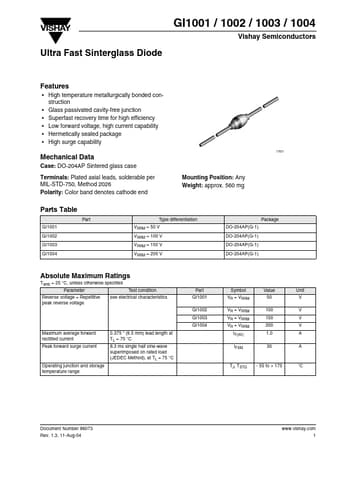

GI1002 Ultra Fast Sinterglass Diode by Vishay - Datasheet Preview — Datasheet preview – GI1002

Datasheet Details

Part number	GI1002
Manufacturer	Vishay
File Size	337.48 KB
Description	Ultra Fast Sinterglass Diode
Datasheet	GI1002 Datasheet
Note	This datasheet PDF includes multiple part numbers: GI1002, GI1001. Please refer to the document for exact specifications by model.
Additional preview pages of the GI1002 datasheet.

Product details

Features

High temperature metallurgically bonded construction.
Glass passivated cavity-free junction.
Superfast recovery time for high efficiency.
Low forward voltage, high current capability.
Hermetically sealed package.
High surge capability Mechanical Data Case: DO-204AP Sintered glass case Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight: approx. 560 mg.
