HIK820, HIK101 Datasheet - Vishay

HIK820 High Voltage Ceramic Singlelayer DC Disc Capacitors

Ceramic Class Ceramic Dielectric Voltage (VDC) Min. Capacitance (pF) Max. Capacitance (pF) Mounting VALUE 2 Y5T 15 000 100 1500 Radial MARKING Marking indicates, capacitance, tolerance code, and rated voltage. OPERATING TEMPERATURE RANGE -40 °C to +125 °C TEMPERATURE CHARACTERISTICS Y5T SECTION.

HIK101-Vishay.pdf

This datasheet PDF includes multiple part numbers: HIK820, HIK101. Please refer to the document for exact specifications by model.

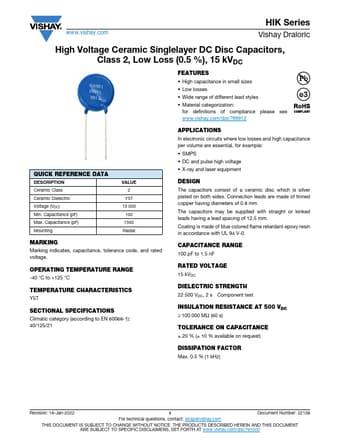

HIK820 Datasheet Preview Page 2 HIK820 Datasheet Preview Page 3

Datasheet Details

Part number:

HIK820, HIK101

Manufacturer:

Vishay ↗

File Size:

74.55 KB

Description:

High voltage ceramic singlelayer dc disc capacitors.

Note:

This datasheet PDF includes multiple part numbers: HIK820, HIK101.
Please refer to the document for exact specifications by model.
