IRFBE20 Datasheet, Mosfet, Vishay

IRFBE20 Features

  • Mosfet
  • Dynamic dV/dt rating
  • Repetitive avalanche rated Available
  • Fast switching
  • Ease of paralleling Available
  • Simple drive requirements

PDF File Details

Part number:

IRFBE20

Manufacturer:

Vishay ↗

File Size:

260.78kb

Download:

📄 Datasheet

Description:

Power mosfet. Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design

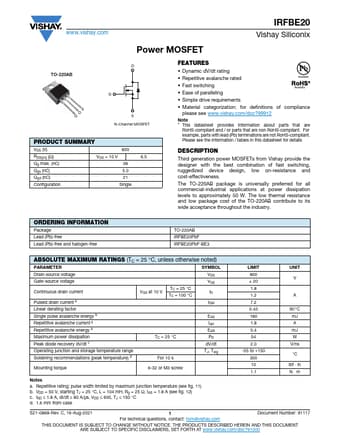

Datasheet Preview: IRFBE20 📥 Download PDF (260.78kb)
Page 2 of IRFBE20 Page 3 of IRFBE20

IRFBE20 Application

  • Applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wi
