IRFD9220 Datasheet - Vishay

Power MOSFET

IRFD9220 Features

* Dynamic dV/dt rating

* Repetitive avalanche rated

* For automatic insertion

* End stackable

* P-channel

* Fast switching

* Ease of paralleling

* Material categorization: for definitions of compliance please see www.vishay.com/doc?9991

IRFD9220 General Description

Third generation power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The 4 pin DIP package is a low cost machine-insertable case style which can be stacked in multiple combinations on standard.

IRFD9220 Datasheet (826.29 KB)

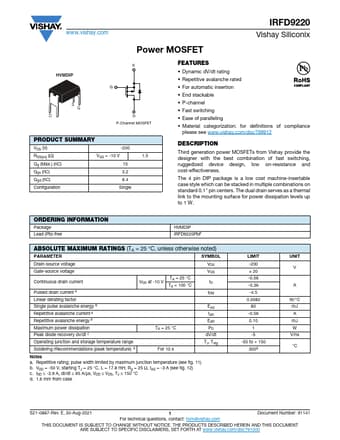

IRFD9220 Datasheet Preview — Preview of IRFD9220 PDF

Datasheet Details

Part number:

IRFD9220

Manufacturer:

Vishay ↗

File Size:

826.29 KB

Description:

Power mosfet.
www.vishay.com IRFD9220 Vishay Siliconix Power MOSFET HVMDIP S G S G D D P-Channel MOSFET PRODUCT SUMMARY VDS (V) -200 RDS(on) (Ω) VGS = -1.
